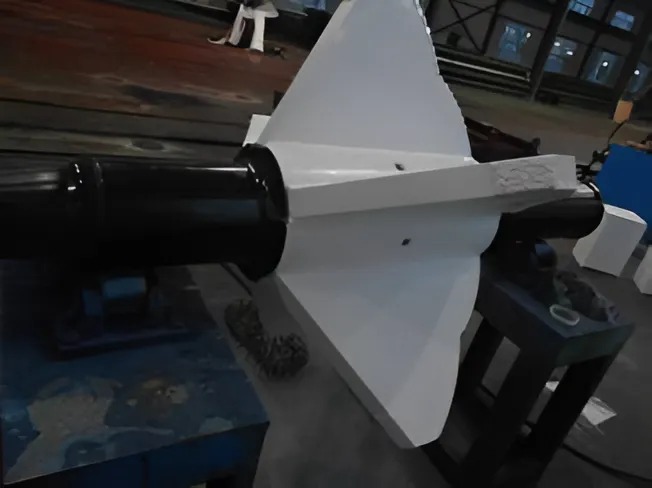

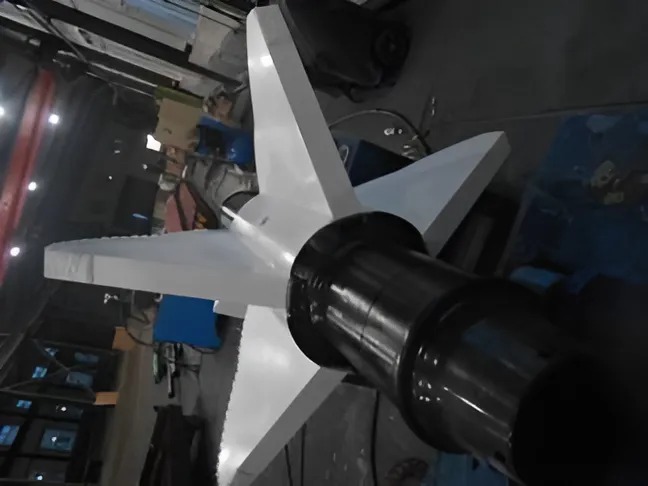

Hole Opener

A hole opener is a specialized device used to enlarge the borehole during drilling operations. It can be positioned either above the drill bit or above a pilot run inside the existing borehole.

Types of Hole Openers

Fixed Diameter Hole Openers: Used for expanding drilled holes. Features include

High-quality manufacturing with strict quality control
Field maintainable with easy assembly and disassembly
Equipped with 3 or 4 cutters and strategically located mud nozzles for simultaneous cleaning.

Purposes of Hole Openers

Overcoming Rig Capacity: When drilling a larger hole isn’t feasible due to rig constraints.
Improving Penetration Rate: To achieve a satisfactory penetration rate when drilling larger holes.
Controlling Hole Direction: Ensuring accurate directional control during drilling.

Tool Features

Design

Specifically engineered for large hole applications, such as conductor holes, allowing for enlargement from smaller pilot holes in a single pass

Construction

Body made from AISI 4145 H modified alloy steel
Saddles, ribs, and plates welded for durability
Hardfaced areas prone to wear for added protection.

Cutter Assembly:

Excellent circulation due to strategically placed nozzles between cutters
Fully sealed unit with ball and roller bearing elements for optimized performance
Cam lock design for rotational stability.

Ease of Maintenance

Cutter assemblies can be easily changed on-site using standard hand tools.

Cutter Types Available

ST (Soft Medium Tooth Type)
MM (Medium Hard Tooth Type)
HD (Hard Tungsten Carbide Insert Type)

Custom Configurations

Bottom configurations can be customized per customer needs (e.g., bit box, bullnose).

Ordering Information

Hole size
Pilot size
Connection/bottom end configuration
Circulation nozzle opening size
